Lyte MV Series Shortform Guide

The Lyte-MV range of laser modules provides reliable high power, industrial laser light sources with well-defined line illuminations. Used primarily with industrial cameras, they are suitable for a wide range of inspection, measurement and control systems.

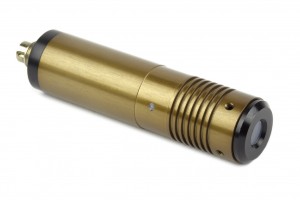

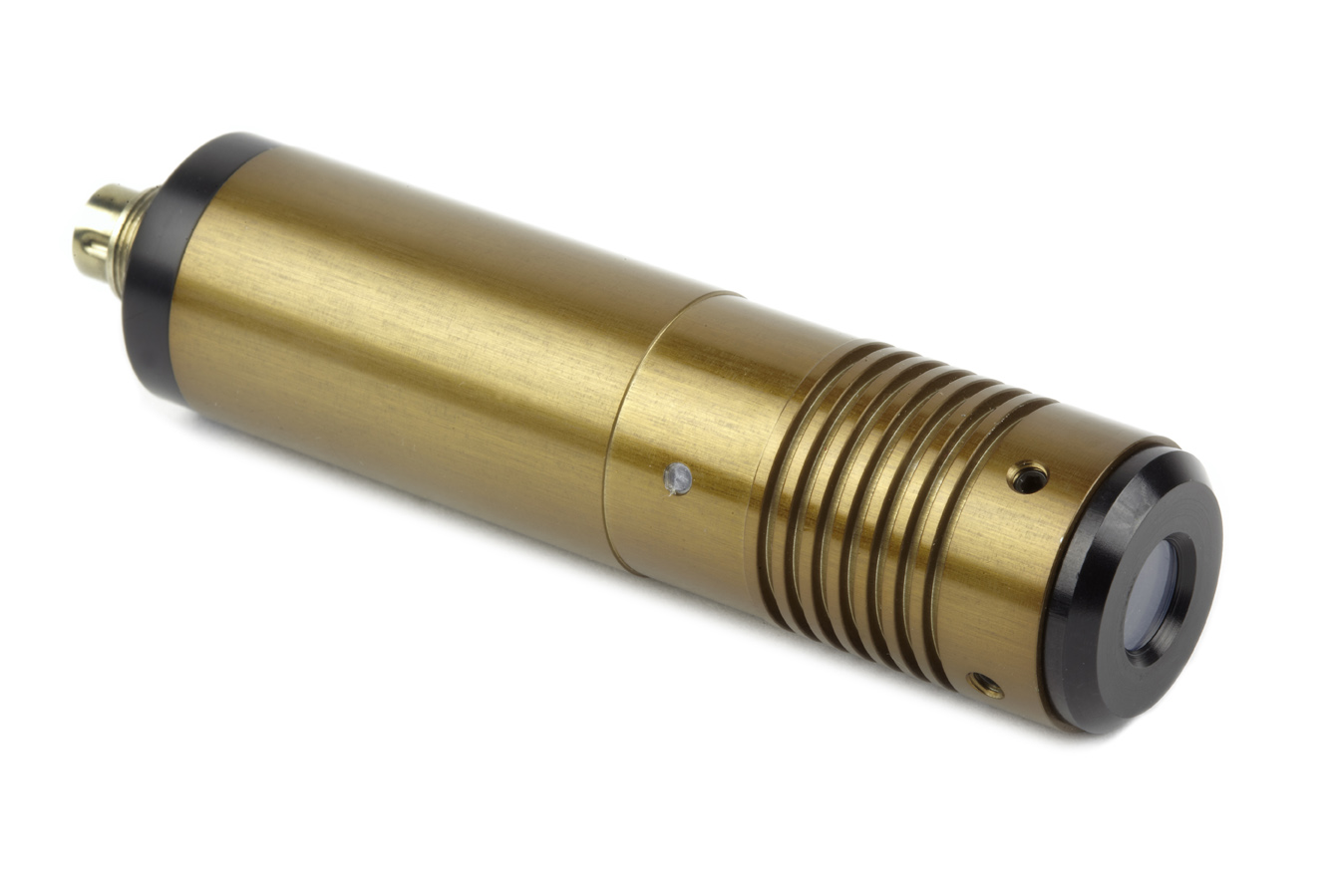

LYTE-MV

The Lyte-MV is the entry model of the machine vision laser series and produces a unifrom non-Gaussian line.

Powers up to 100mW Red, 200mW I/R, Uniform non-Gaussian line with fan angles from 15 to 90 degrees, CW, Linear modulation or TTL control, User adjustable focus

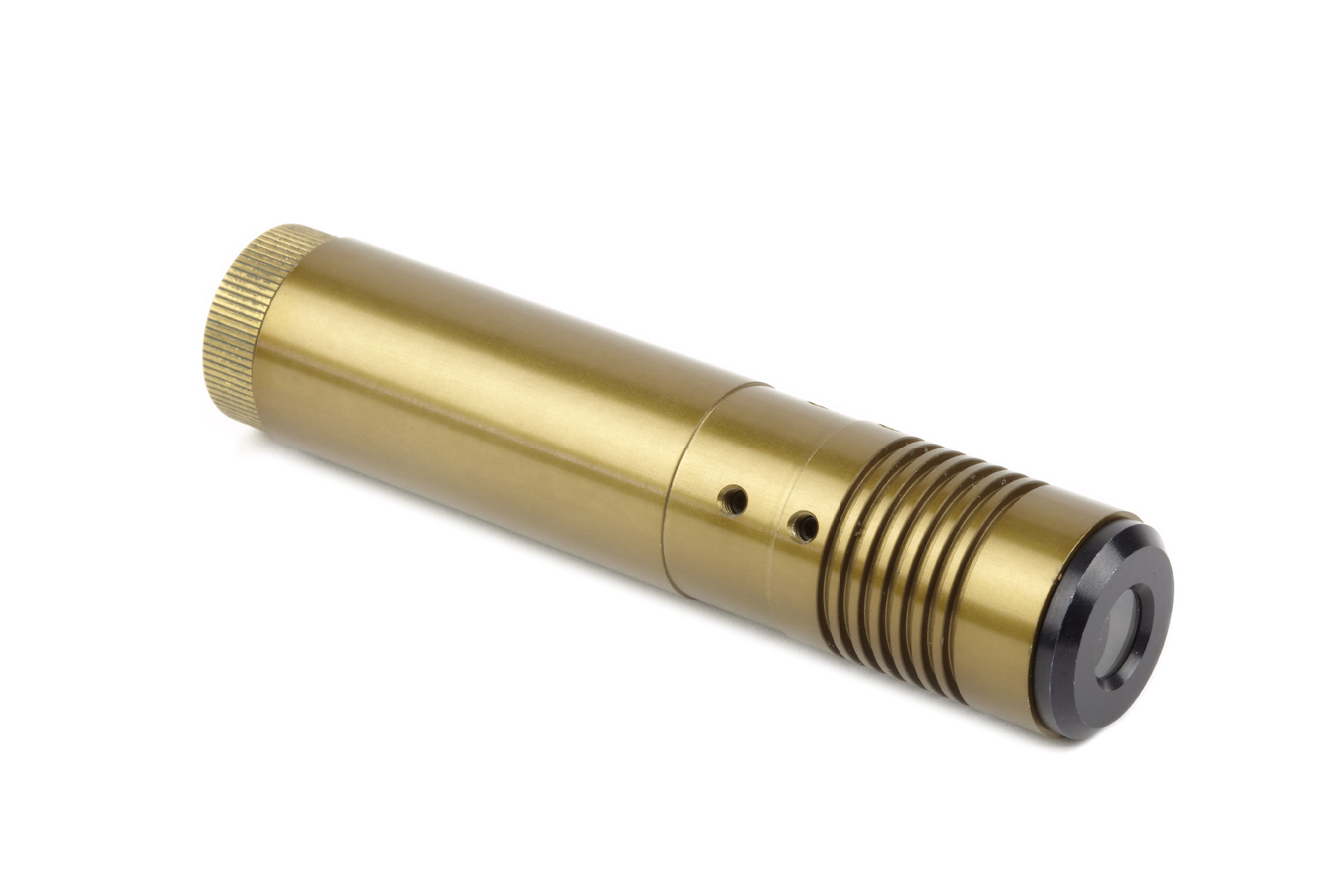

LYTE-MV-EXCEL

The Lyte-MV-Excel has all of the features of the Lyte-MV but has the added benefit of being able to adjust the focus without removing the line lens.

Unique user adjustable focus (without removing line optics), Classification remains the same during focus adjustment, Improved linewidth, Accurately aligned

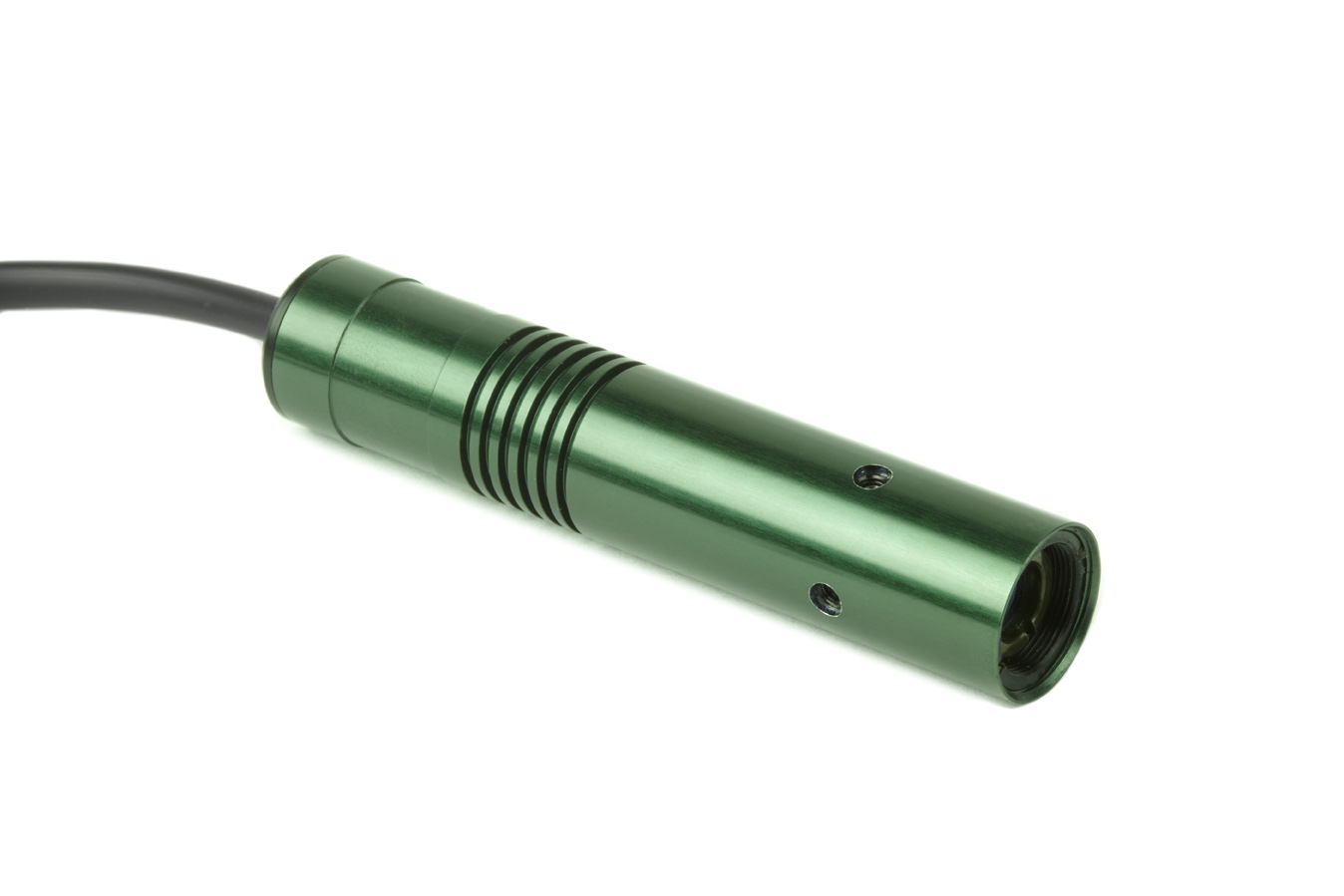

GREENLYTE-MV-EXCEL

The GreenLyte-MV-Excel has the same features of the Lyte-MV-Excel but a high visibility green wavelength which is more suitable for specific applications such as inspecting hot metal and meat.

Green 532nm, Powers 5 – 50 mW, Unique user adjustable focus (without removing line optics), Classification remains the same during focus adjustment, Uniform non-Gaussian line with fan angles from 15 to 90.

For further information about any of these products please refer to the main datasheet.
